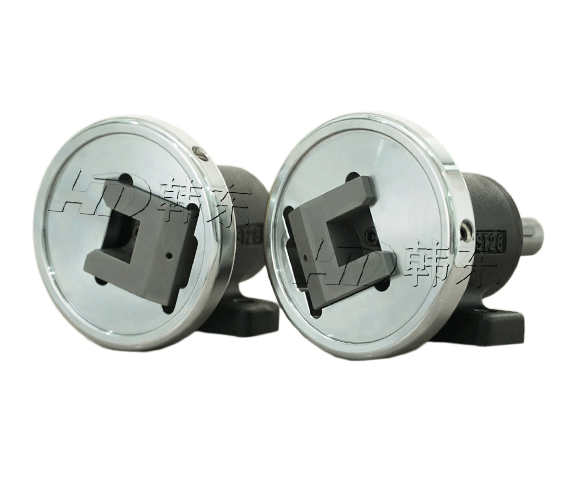

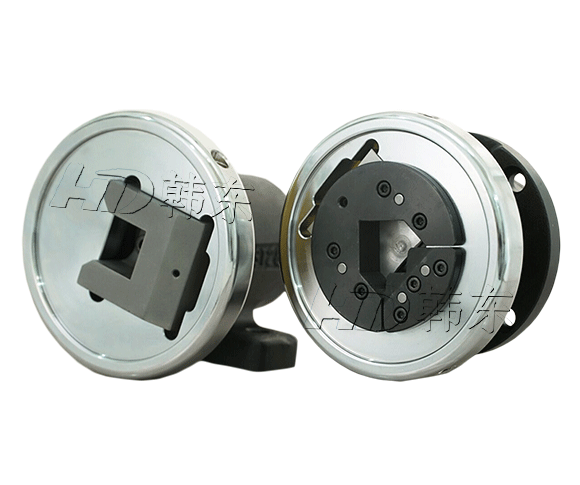

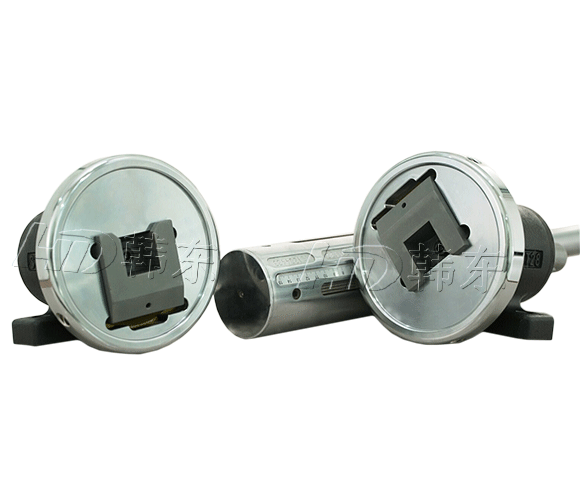

STO/STW pillow mounted safety chuck is a kind of bear heavy loading spare part, it is fixed on the worktable in vertical or horizontal as needed. This safety chuck is easy, practical and convenient for installation design, it provides fast, safe, accurate and simple coupling and disengagement operation for frequent movement. Its driving part specification can be customized as different customers and working situation requirement. Safety chuck's structure can make safe operation and air expanding shaft steel bar will not slippage.
STO/STW pillow mounted safety chuck technical data:
|
Model |
STO/STW28 |
STO/STW35 |
STO/STW50 |
STO/STW75 |
|
Max loading weight (kg) |
800 |
1600 |
2800 |
7000 |
|
Max torque (kg.m (N•m) |
18（180） |
35（350） |
110（1100） |
235（2350） |
|
Reel end size (mm) |
22-30 |
30-40 |
40-50 |
50-80 |
|
Weight (kg) |
18 |
25 |
50 |
85 |
Following is the drawing of this safety chuck:
